RESO Graphene Infrared Heating System

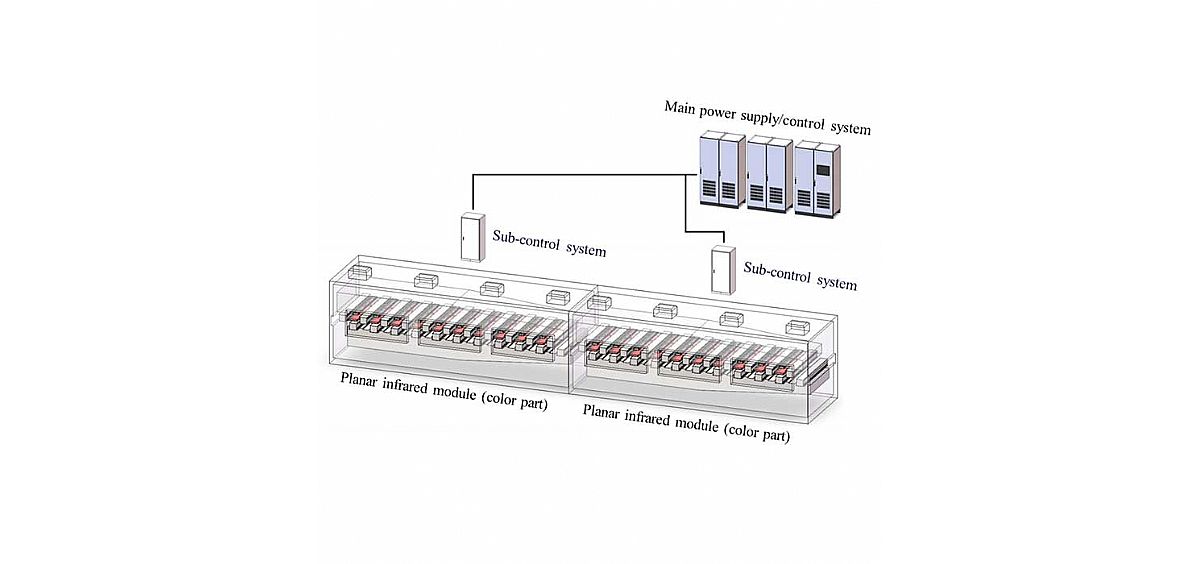

RESO planar infrared system consists of the following four parts:
The large planar infrared module is installed in the drying furnace;
The installation structure for fixing the planar infrared module in the drying furnace;
Power supply/control system, which is divided into main control system and sub-control system;
Control software is pre-installed in the control system's PLC.

Request a quote

PRODUCT CHARACTERISTICS

RESO infrared module can directly emit infrared heating pole pieces, and the heat transfer path is extremely short. Compared with traditional methods.

It avoids a large amount of heat loss caused by multiple heat exchanges, hot air circulation, and exhaust gas discharge and realizes substantial energy savings by improving the energy utilization rate.

The actual test shows that the 65m dying furnace needs 550,000 kcal/h when using the Hot air circulation mode and only uses 300,000-350,000 kcal/h when using the RESO planar infrared system, saving energy by 40-50%.

PRODUCT SPECIFICATION

Heating scheme	Heat transfer mode	Heat transfer path	Heat loss
RESO planar-infrared system	Medium and long-wave infrared	50mm	Low
Electric heating package	Hot air circulation	Several meters	High
Heat transfer oil/steam heating	Hot oil/hot steam + hot air circulation	Tens of meters	High

All-new planar infrared heating technology

Advantages of RESO Planar Infrared System

	✔ High efficiency: 30% increase in production speed; energy conservation: saving energy by 40%; ✔ Low-temperature infrared excitation to achieve explosion-proof safety; ✔ Planar infrared field to ensure uniform drying; ✔ Match the pole piece production requirements of high efficiency, high speed, and high area density.
	× Large heat loss, energy utilization rate less than 10%; × Drying speed and quality heavily depend on the wind field; × Difficulty in achieving high-speed and thick coating processes.
	× High working temperature with potential for combustion and explosion; × Uneven infrared field, resulting in excessively dry, wrinkled, and cracked pole pieces; × Complex installation and high usage cost, requiring cooling systems.

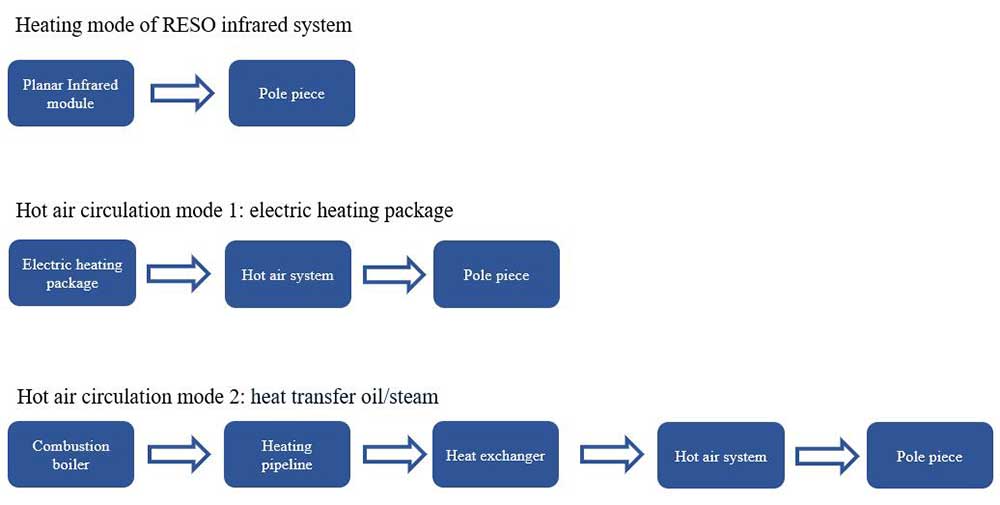

Shorter heat transfer path, significantly energy-saving
