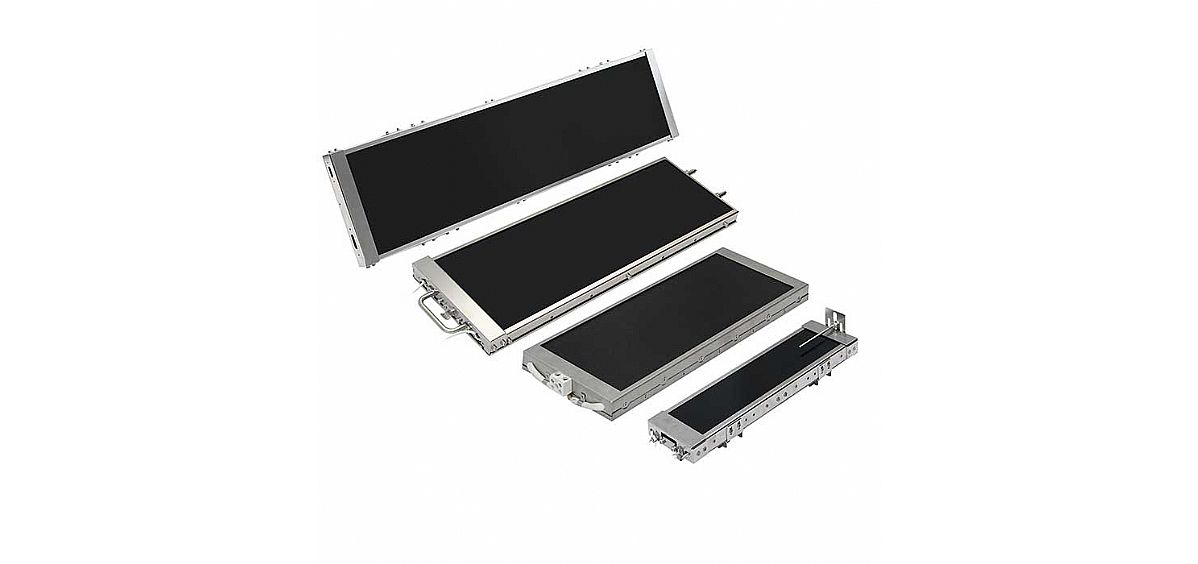

Graphene Infrared Heating Module

The graphene infrared material is completely self-developed and produced, and the low-temperature infrared conversion rate is > 80%;
Mastering the preparation technology of large-sized planar infrared devices, with size > 1000mm, infrared intensity deviation < 5%, and working life > 20000h;
The design and production of infrared modules can be customized to fully meet the requirements of high-quality drying, baking, and other processes;
Configure intelligent control systems to achieve fully automatic control and high-quality production that meets customers' strict requirements.
Request a quote

PRODUCT CHARACTERISTICS

01

Compared with traditional electric heat pipes, the energy-saving efficiency of the "glass-ceramic energy-saving heating plate" based on water-based nano-energy heating materials can reach 37-48% under the same working conditions.

02

The effective electric heating conversion efficiency is high, and the heating speed is fast; the surface of the heating plate can be rapidly heated from normal temperature to more than 420 ° C within 100 seconds. Compared with the traditional electric heat pipe, the heating efficiency is increased 2-3 times.

03

The heat is stable and uniform, emitted by infrared radiation, the penetration is strong, and the baking effect is good.
Long service life: due to the special preparation process and the characteristics of energy-saving materials, the design service life of glass-ceramics energy-saving heating board can reach 25,000 hours.


PRODUCT SPECIFICATION

Rated voltage 110-380v
Dimensions(mm) 150-400(W),150-1800mm(L), ~30mm(D)
Control types Closed-loop feedback or open-loop system
Max power density 20KW/m2
Typical operating temperature 250-350°C

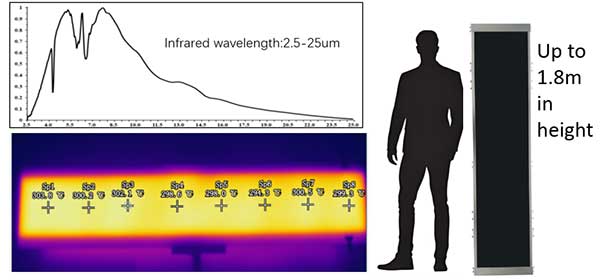

lnfrared wavelength 2.5-25um



What can the P-IR system provide?

  1. Mild heating without uncontrolled high temperatures
  2. Uniform temperature field achieved by P-IR modules
  3. Rapid heating without heat transfer medium
  4. Efficient energy utilization by thermal radiation heating
  5. Accurate and penetrating heating by M-L wave IR

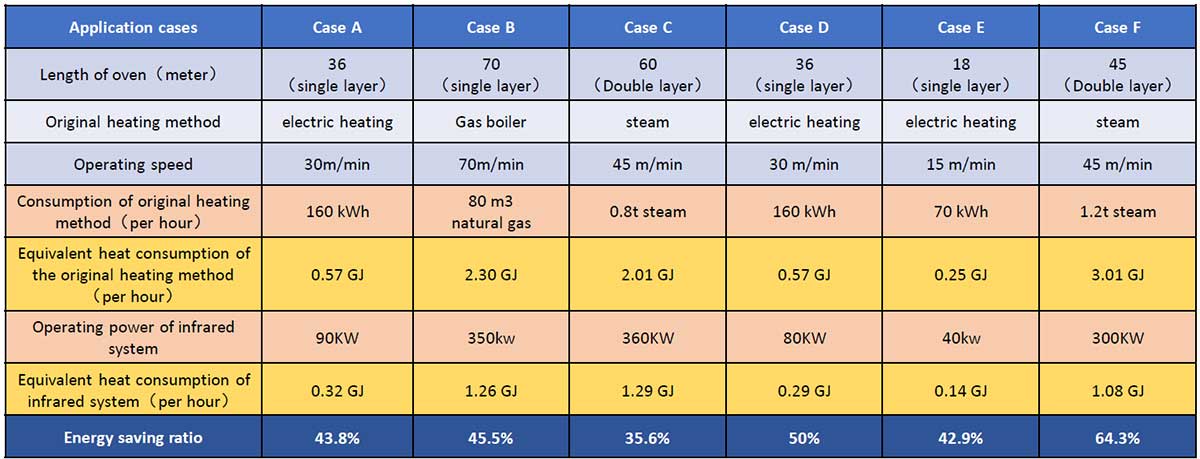

Significant in energy saving by using RESO Infrared heating system.
