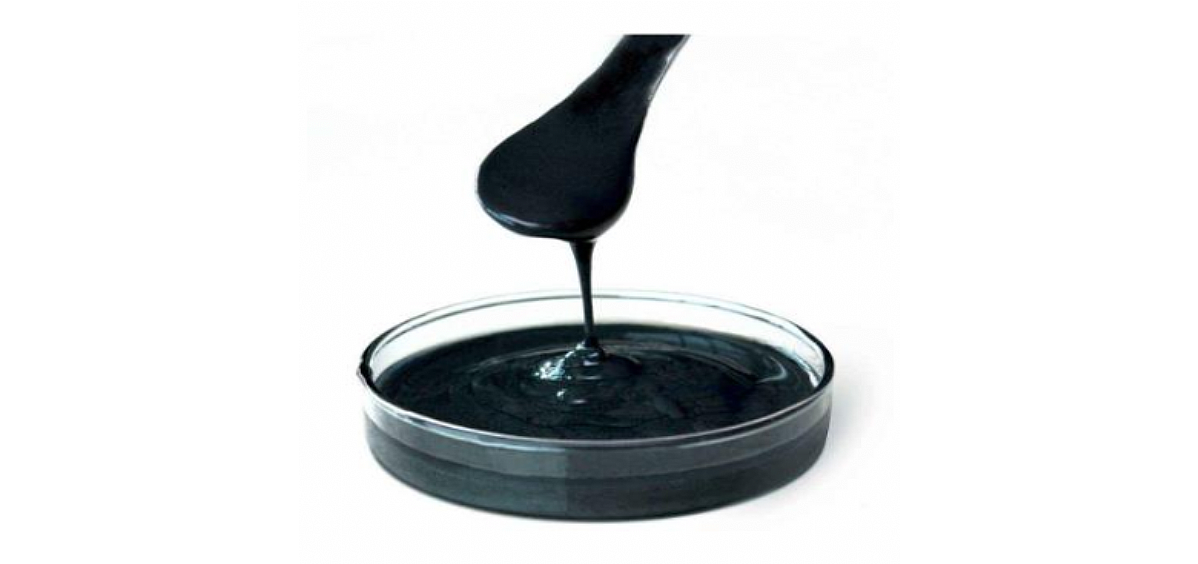

Graphene Heat Dissipation Coating RC-150L

Graphene cooling coatings can form infrared cooling coatings on the surface of electric heaters, thereby improving the energy efficiency and heating speed of environmental appliances (heaters) and the experience.
Applied in environmental electrical appliances, the application brand covers a number of leading international household appliance enterprises.
The heat dissipation coating can withstand 500℃ and can also be used for high-temperature heat dissipation and cooling applications.

Request a quote

PRODUCT CHARACTERISTICS

In a single-component water-based coating, there is no need to cook before use or sandblast the surface of the substrate. The coating has good temperature resistance and adhesion and is resistant to -20~150℃ hot and cold shocks and mechanical shocks.

The heat radiation coefficient is up to 0.9, and the heat exchange/ dissipation effect is enhanced by 20-30%. Dry film 10-25um can play a full function; one kilogram can spray 15-20 square meters of surface.

Once applied, it is effective for a long period and permanently improves the thermal performance of the surface.

PRODUCT SPECIFICATION

Model	Appearance	Viscosity (mpa-s)	Solid Content	Thermal radiation coefficient	Adhesion	Coating hardness	Applicable temperature
RC-150L	Black gray liquid	2000-4000	25wt%	>0.9	0 or 5B	2-4H	-50~150℃

Usage, storage, and other matters

Curing: Bake at 120℃ for 20 minutes or 48 hours at room temperature for natural curing.
To ensure the paint's adhesion, please ensure the substrate's surface is clean and free of oil and ash. If necessary, the surface of the object should be properly cleaned.
The paint may be layered or precipitated if left for a long time. This is normal and does not affect the paint's performance. It should be stirred properly before use.
The paint can be applied by spraying, brushing, rolling, dipping, etc. The spraying process is recommended.
The recommended wet film thickness is about 100um, and the dry film thickness is about 20um; after spraying, if conditions permit, it can be left for 5-10 minutes before baking to achieve better coating smoothness.

Transportation

The transportation process should be light loading and unloading, and dumping and throwing are strictly prohibited.
Prevent sunshine and rain, and prohibit mixing and transporting with liquid or corrosive or strong oxidizing articles.
