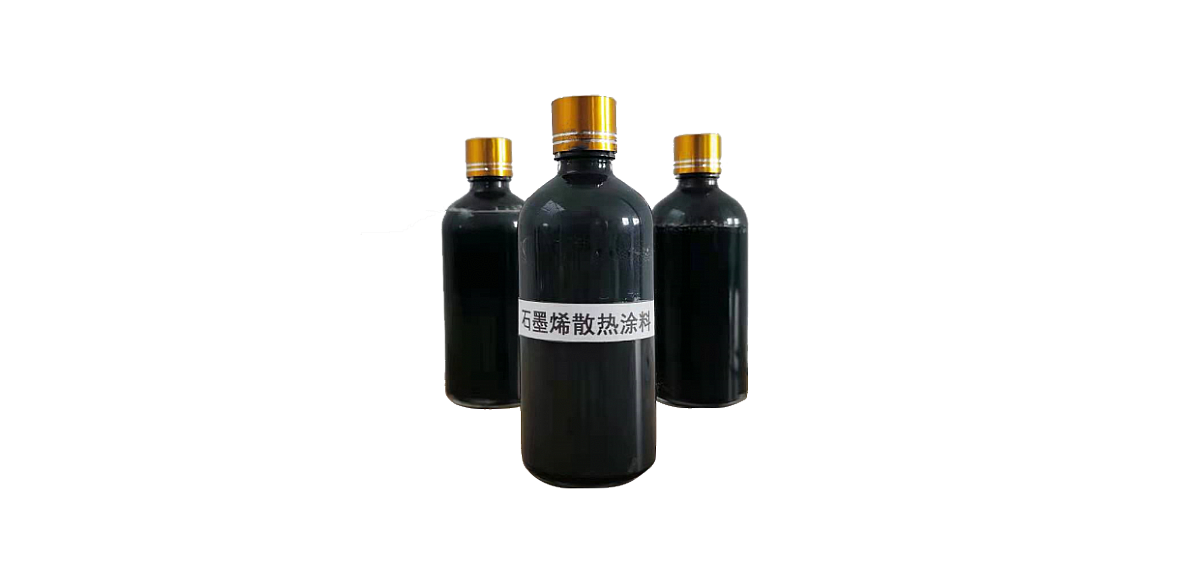

Graphene Heat Dissipation Coating RC-500H

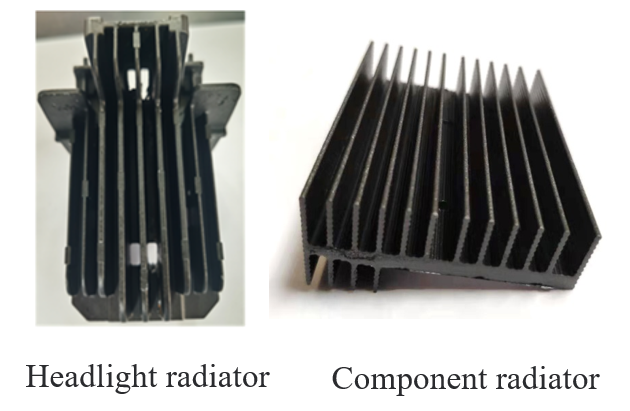

• Applied to components, power modules, and LED lamp modules to enhance heat dissipation and weight reduction;
• Improve the heat dissipation effect or reduce the heat dissipation system cost to achieve a lightweight heat dissipation effect.

Usage, storage, and other matters

• Curing method: Hold and bake at 260℃ for 40 minutes or hold and bake at 280℃ for 20 minutes.
• To ensure the paint's adhesion effect, please ensure that the substrate's surface is clean and free of oil and ash, and if necessary, the object's surface should be properly cleaned.
• The paint may be layered or precipitated if left for a long time. This is normal and does not affect the paint's performance. It should be stirred properly before use.
• The paint can be applied by spraying, brushing, rolling, dipping, etc. The spraying process is recommended.
• The recommended wet film thickness is about 100um, and the dry film thickness is about 20um; after spraying, if conditions permit, it can be left for 5-10 minutes before baking to achieve better coating smoothness.

Transportation

• The transportation process should be light loading and unloading, and dumping and throwing are strictly prohibited.
• Prevent sunshine and rain, and prohibit mixing and transporting with liquid or corrosive or strong oxidizing articles.
